Description
Specifications

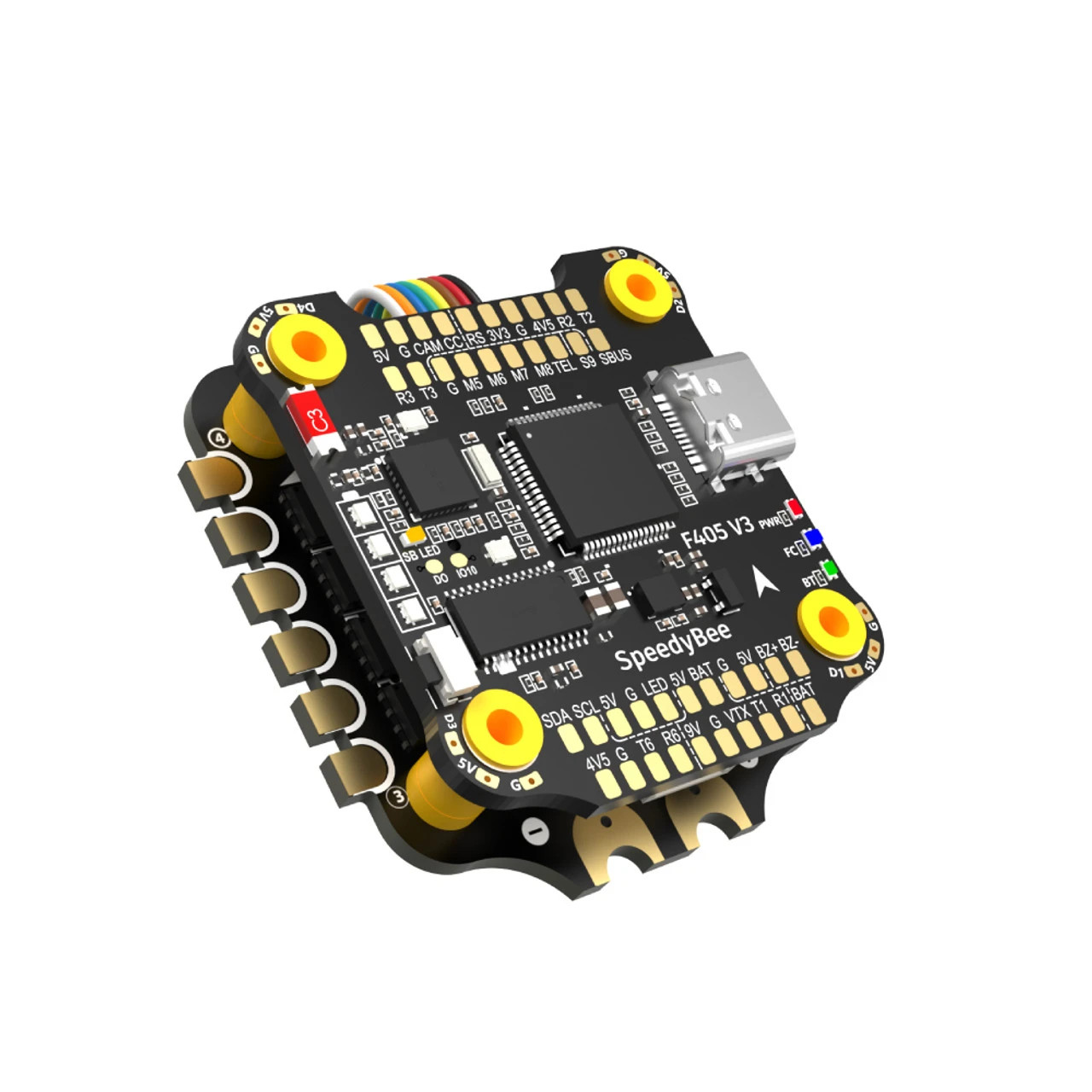

SpeedyBee F405 V3 FC
Item name: F405 V3 Controller
Input power: 12.6-25V (3-6S) Lipo
MCU: STM32F405
IMU(Gyro): BMI270
USB Port: Type-C
Baro: yes
OSD Chip: AT7456E chip
BLE Bluetooth: yes
Firmware Target Name: SPEEDYBEEF405V3
Firmware Target Name: SPEEDYBEEF405V3
Mounting hole: 30.5 x 30.5mm( 4mm hole diameter)
Dimension: 41.6(L) x 39.4(W) x 7.8(H)mm
Weight: 9.6g
SpeedyBee BLS 50A 30×30 4in1 ESC
INPUT VOLTAGE: 3~6S Lipo (12.6V~25V)
CONTINUE CURRENT: 40A×4 BURST
Burst Current: 55A(5S)
Current sensor: yes
Mounting size: 30.5×30.5mm (hole diameter 4mm)
Dimensions: 45.6x44x6.1mm
Weight: 13.8g
Mounting size: 30.5×30.5mm (hole diameter 4mm)
Dimensions: 45.6x44x6.1mm
Weight: 13.8g
