Description

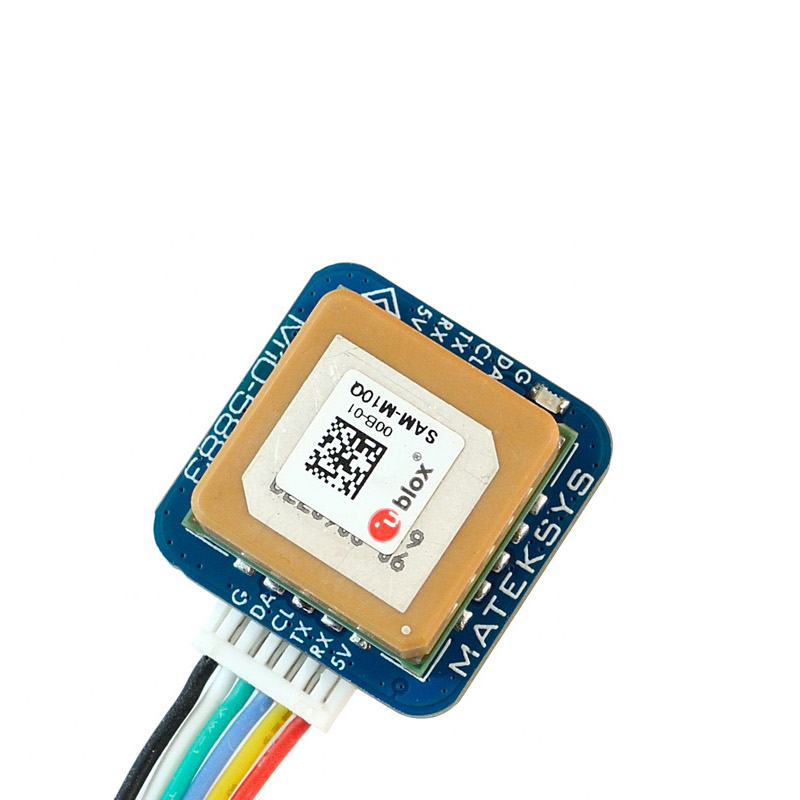

The MATEKSYS M10Q-5883 GNSS & Compass is a powerful multi-constellation GNSS module powered by u-blox SAM-M10Q-00B. Thie MQ10-5883 supports concurrent reception of GPS, GLONASS, Galileo, and BeiDou, providing exceptional sensitivity and maximum position availability. The high-gain 15 x 15 mm2 patch antenna offers the best balance between performance and small size, while the omnidirectional radiation pattern increases installation flexibility.
Specifications
- GNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)
- Protocol: UBX(u-blox) 5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz
- GNSS u-blox SAM-M10Q-00B (GPS, GLONASS, Galileo and BeiDou)
- Protocol: UBX(u-blox) 5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz
- JST-GH-6P connector (SM06B-GHS-TB). 1.27mm pitch
- I2C(DA, CL) interface for Compass QMC5883L
- UART(TX, RX) interface for GNSS SAM-M10Q-00B
- Input voltage range: 4~9V (5V pad/pin)
- Operating Temperatures: -20~80 °C
- Magnetic Compass QMC5883L
- UART baudrate: 9600 default
- Patch antenna 15*15*4mm
- Power consumption: 13mA
- 20mm*20mm*12.4mm
- 8g
WIRING
- M10Q-5883 5V to Flight controller 4~9V
- M10Q-5883 RX to Flight controller UART_TX
- M10Q-5883 TX to Flight controller UART_RX
- M10Q-5883 CL to Flight controller I2C_SCL
- M10Q-5883 DA to Flight controller I2C_SDA
- M10Q-5883 G to Flight controller GND
Includes
- 1x MATEKSYS M10Q-5883 GNSS & Compass
- 1x JST-GH-6P to JST-GH-6P 20cm silicon wire
