Description

Specification

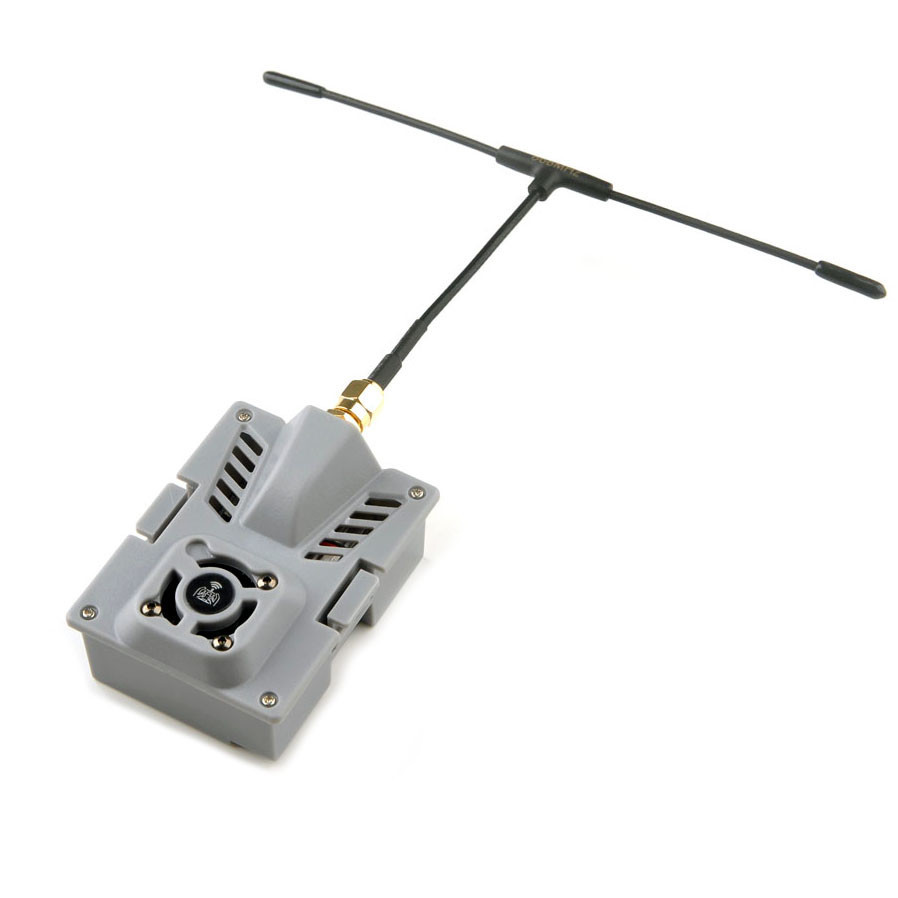

ES900TX：MCU:ESP32+ESP8285

Dimension: 55mm*39mm*11mm

Weight: 9.2gram (only the TX module)

Antenna connector: SMA

VCC input: 5~13v, Recommend 5v~9v

RF Frequency optional: 915mhz

Maximum Output Power: <33dBm(For >27dBm operation, we recommend add a fan for force cooling)

Wifi update firmware function for ES900TX would be available in a short time.
